The Style1 fabricated threaded thermowell is designed for light process conditions and is manufactured from tube or pipe and closed at the tip by a welded cap.
It features a parallel stem profile and has wide variety of process thread connections available. The instrument connection can be specified with a BSPP, BSPT or NPT thread which allows for easy installation of an RTD or Thermocouple temperature sensor.
The Style 1 fabricated threaded thermowell is available in a wide selection of materials including 316 stainless steel, Alloy C276 (Hastelloy®), Alloy 400 (Monel®) and Alloy 600 (Inconel®).
There are a number of optional certification and testing services available including 3.1 material certificates to ensure full traceability, pressure testing and positive material identification (PMI).
The instrument connection can be specified with a BSPP, BSPT or NPT thread which allows for easy installation of an RTD or Thermocouple temperature sensor. Our range of temperature sensors can be seen here and here.
You can learn more about thermowells here

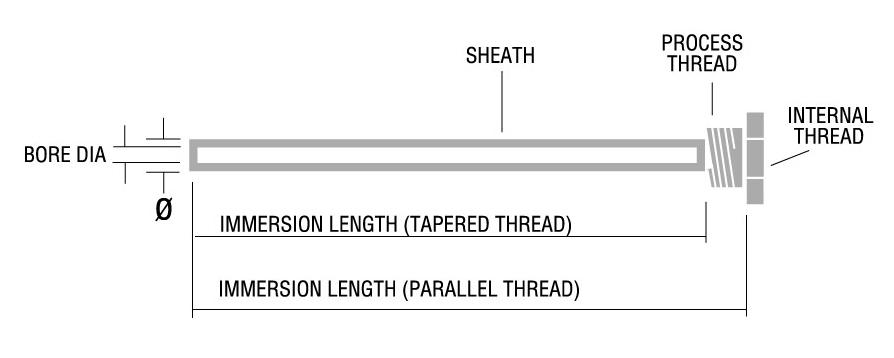

Specify the parameters you require from the diagram below.
