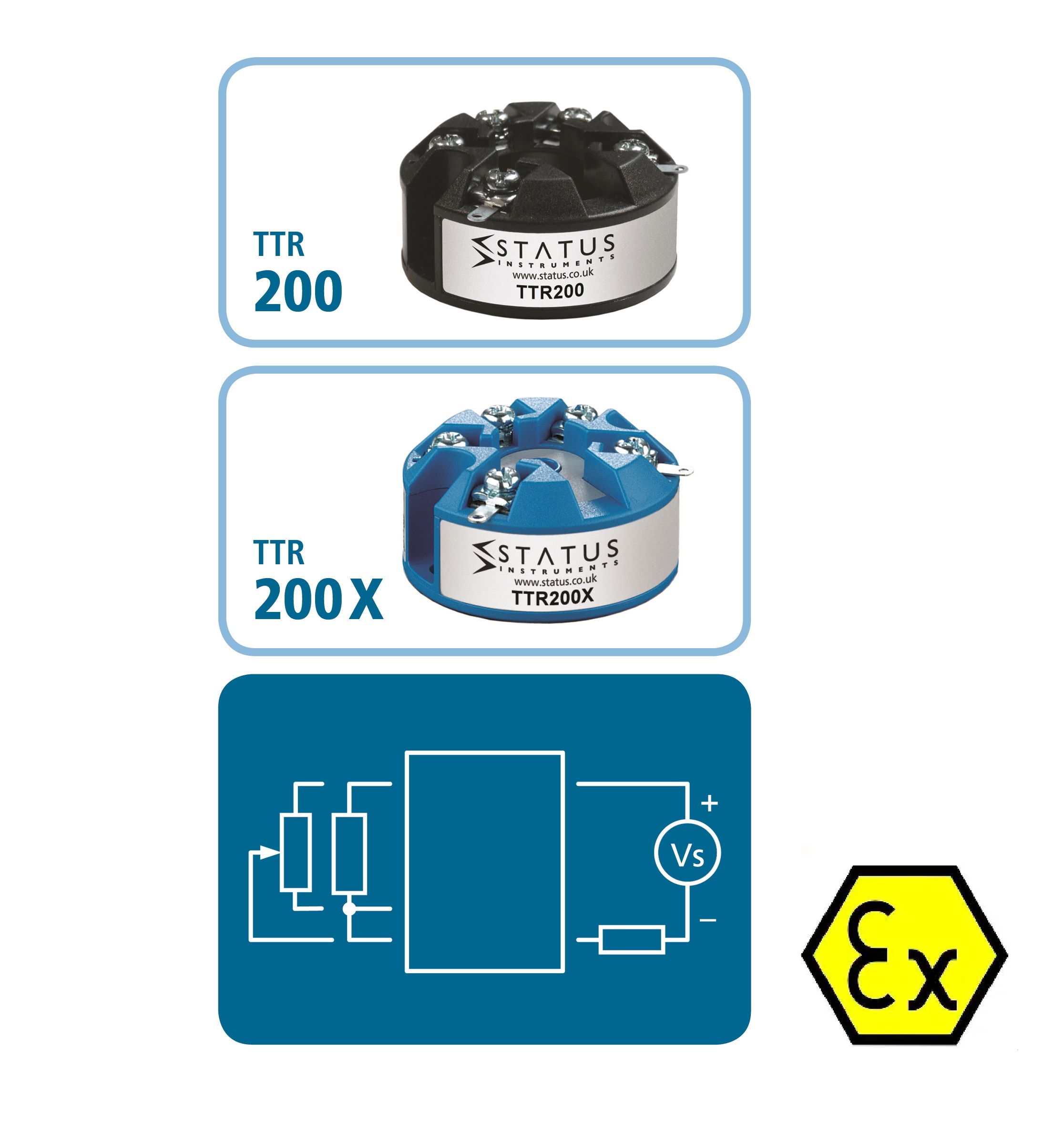

TTR200 and TTR200X

Suitable for RTD, potentiometer and resistance sensors. UKEX, ATEX and IECEx versions available.

The TTR200 RTD temperature transmitter accepts wide range of RTD sensors including Pt100, Pt500, Pt1000, Potentiometer, and Resistance sensors. It generates an industry standard (4 to 20) mA transmission signal across a programmed process range.  There is a version, (TTR200X), approved for use in hazardous areas and is approved to ATEX, IECEx and UKEX

The product can be easily programmed using our free USB Speedlink software and a standard USB lead (safe area version). Used with potentiometer and mV inputs, a linearisation feature is available allowing the mA output to act as required over 22 points of the input signal.  It comes with a calibration feature so both the offset and span can be adjusted to match a particular temperature sensor when applied to a known reference temperature.

This RTD temperature transmitter can be ordered with any of our temperature probes and connection heads. We can supply safe area probe assemblies or ExD and Exia approved temperature probe assemblies with the temperature transmitter included.

If you already know the specification you require, we can configure the product for you at no extra cost.
