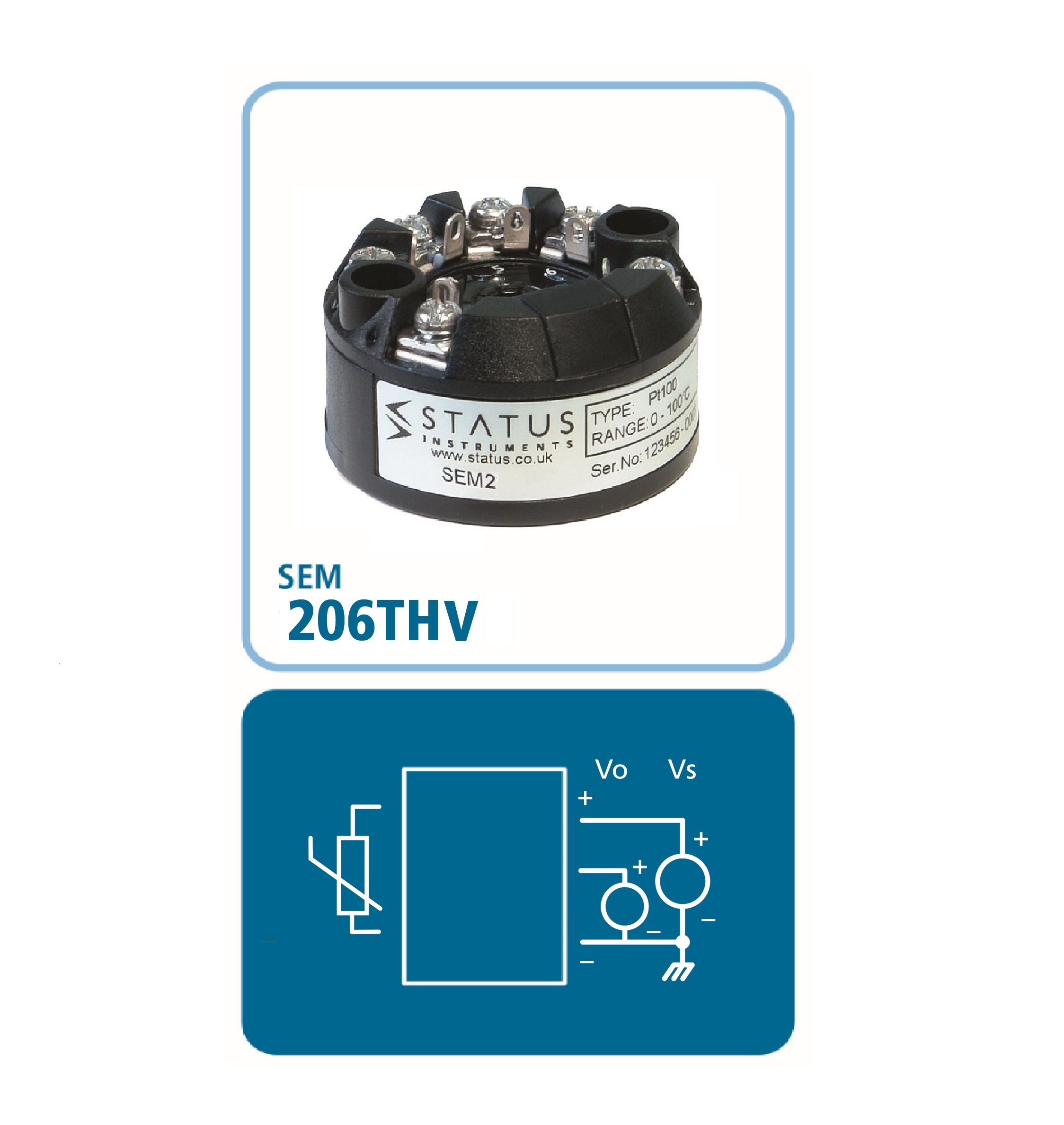

SEM206THV

Temperature transmitter with thermistor, Pt1000, Pt500 input and voltage output

The SEM206THV is an in-head transmitter that accepts thermistor temperature sensors as well as Pt1000 and Pt500
RTDs and converts the sensor output over a configured range to a standard industrial (0 to 10) Volt output signal.

The output signal is linear to temperature. PC configuration allows the user to select Range and
Burnout direction, without requiring calibration equipment. Configuration is performed quickly using our USB port-driven
configurator by simply connecting two clips to the SEM206THV power terminals and following the software
instructions.

Calibration set up may be saved as a file on the PC for later use. The output signal is linear to temperature. A variety of
thermistor types are available when using USB-SpeedLink configuration software. Please consult your supplier for
custom thermistors.

SENSOR REFERENCING
The SEM206THV sensor referencing, via the Windows based USB-Speedlink software, allows for close
matching to a known reference sensor, eliminating possible sensor errors.

SENSOR BURN-OUT DETECTION
If a sensor wire is broken or becomes disconnected, the SEM206THV output will automatically go to its user-defined level, upscale or downscale.

STABILITY
The SEM206THV in-head transmitter incorporates the latest digital technology to ensure accurate, low-drift
performance.

SENSOR LIBRARY
The Thermistor or Pt sensor type required, is loaded onto the SEM206THV from a software library using the USB-Speedlink
software. The sensor library can be added to as new sensors become available or are requested.
Thermistor sensors with a resistance value up to 100 K Ohms at 25 °C can normally be accommodated.
