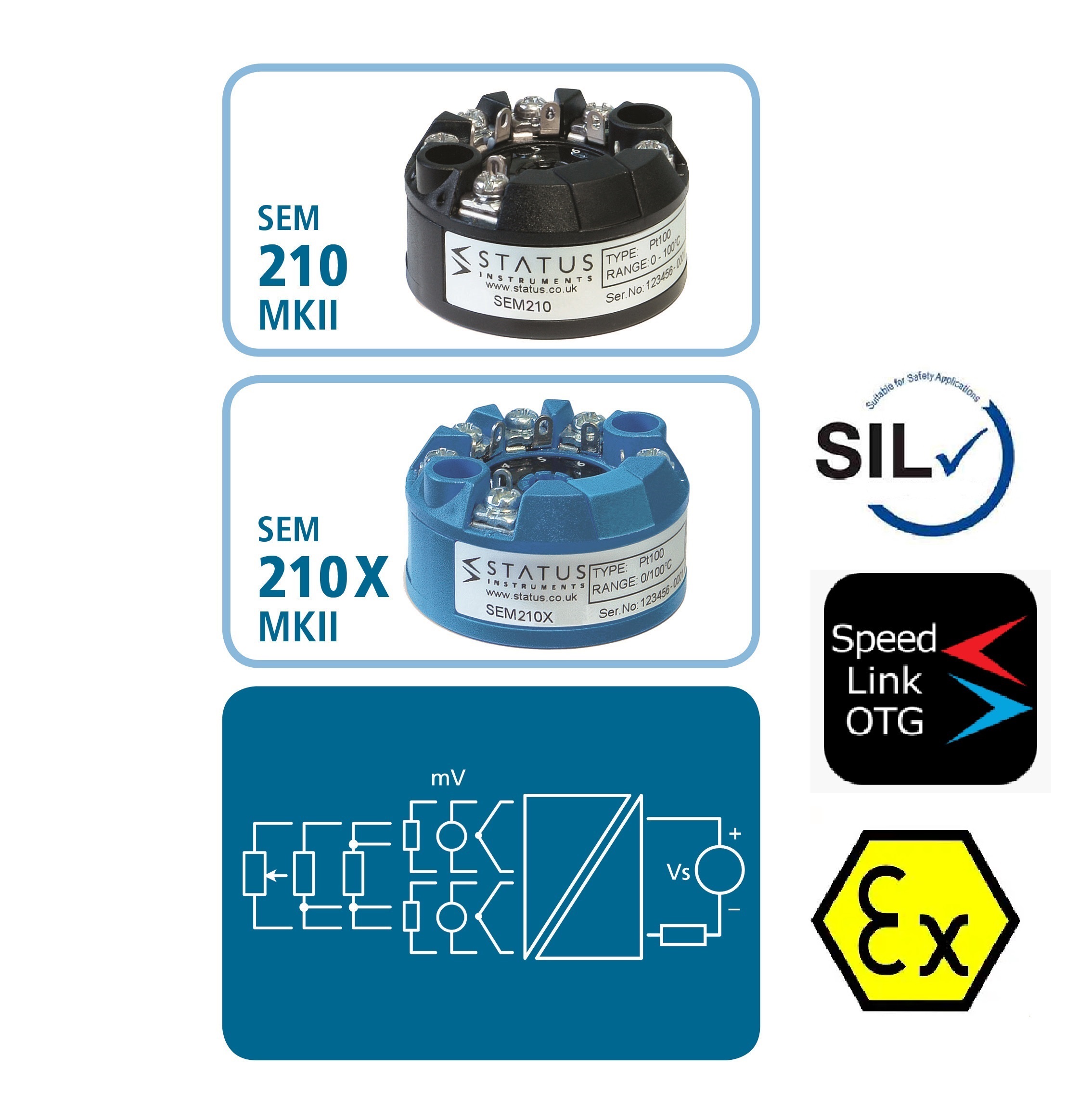

SEM210 and SEM210X

Universal, Dual Input, High Performance

The SEM210 universal temperature transmitter accepts most commonly used Pt100, thermocouple, mV and potentiometer sensors. It generates an industry standard (4 to 20) mA transmission signal over a programmed process range. There is a version, (SEM210X) approved for use in hazardous areas and is approved to ATEX, IECEx and UKEX

The product can be easily programmed using our free USB Speedlink software and a standard USB lead (safe area version).

Isolation is a standard feature to overcome any potential ground loop effects and a sensor referencing facility enables the transmitter to be calibrated to a particular sensor.

This universal temperature transmitter has two sensor inputs. This allows the connection of two sensors enabling maths functions, such as difference, average, highest, lowest, sensor redundancy (TC and mV only) are available. The math function of both inputs is then reflected in the single 4 to 20mA output.

The product also comes with a calibration feature so both the offset and span can be adjusted to match a particular temperature sensor when applied to a known reference temperature.

The universal temperature transmitter can be ordered with any of our temperature probes and connection heads. We can supply safe area probe assemblies or ExD and Exia approved temperature probe assemblies with the temperature transmitter included.

If you already know the specification you require, we can configure the product for you at no extra cost.
