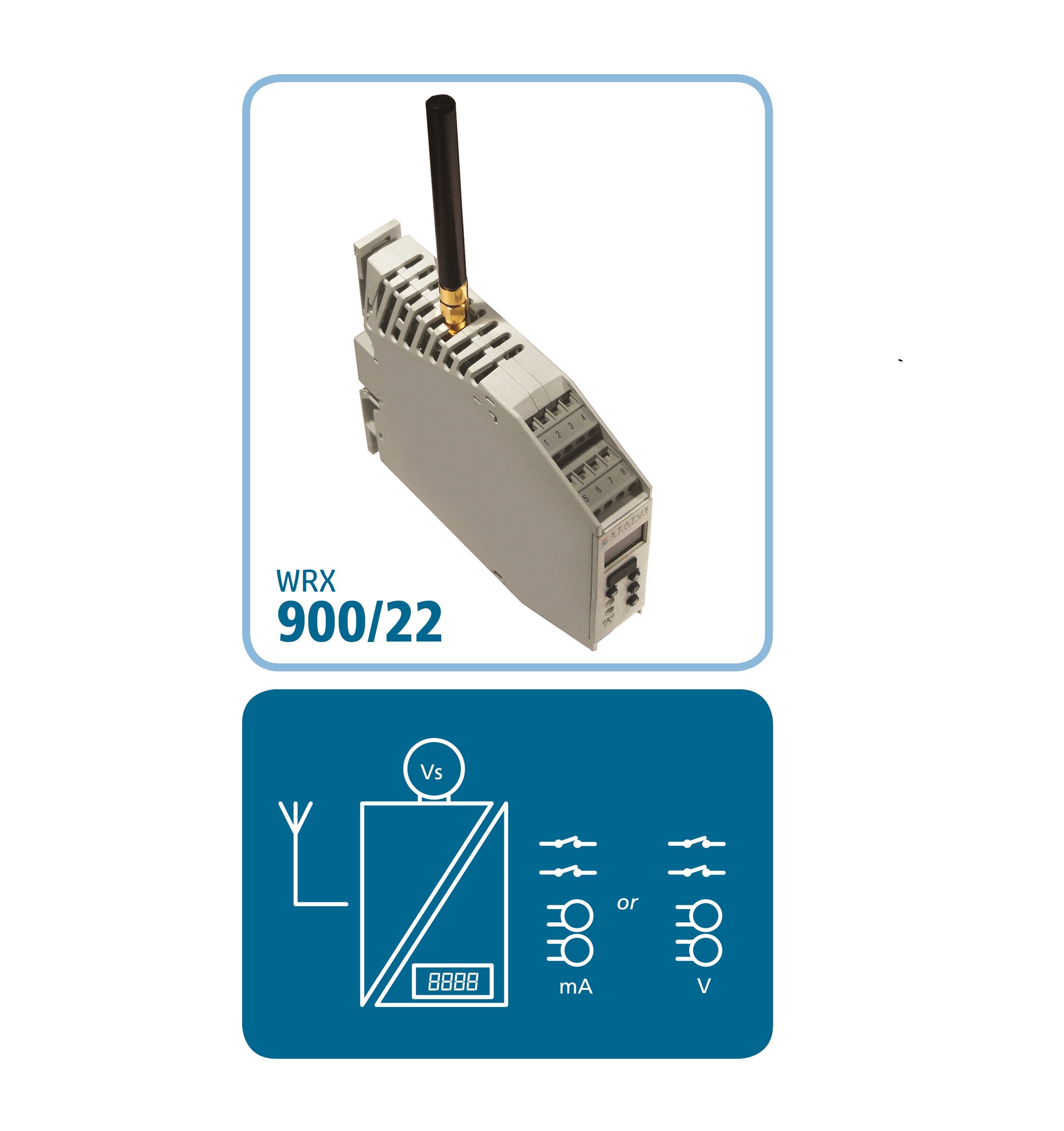

The WRX900 receiver is used together with up to 16 WTX700 wireless temperature sensors to provide wireless temperature measurement. The wireless temperature signal(s) received can be used with two mA and two relay outputs as well as making them all available via a digital RS485 interface.
The product operates using the ISM (Industrial Scientific and Medical) band of 868.4MHz. This frequency is virtually insensitive to external interference and allows transmission even in harsh industrial environments. The antenna screws into the top of the DIN rail module but for use in cabinets or to gain the optimum signal, an optional 10m antenna extension lead with mounting bracket is available.
Programming is possible by PC using the configuration kit. However, it is also possible to programme the product using the push buttons following instructions on the LCD display. In normal use the LCD display shows channel number and process value.
Wireless temperature measurement eliminates the need for cables so is ideal for hard to reach places or moving objects
