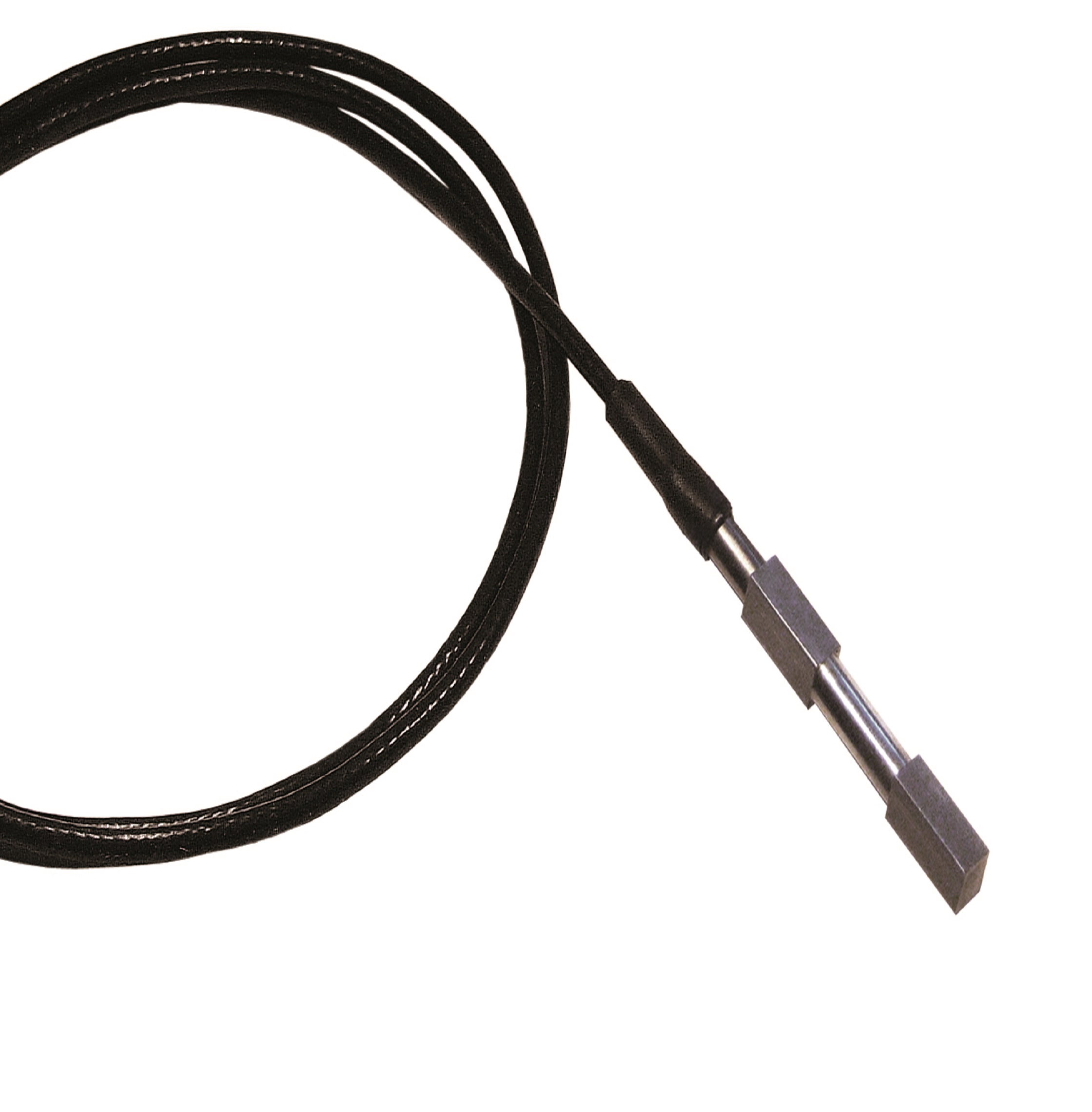

Style 5 Temperature Probe

Surface temperature measurement.

This style is often used where it can be secured to a pipe or surface to measure surface temperature.  Insulation is recommended for maximum accuracy.  When the internal diameter of a pipe is too small for an immersion probe, the style 5 sensor provides a solution.  Its cable is routed to a control box remote from the sensor.

It  is available as a 2, 3 or 4 wire Pt100 or Pt1000  in either simplex, duplex or triplex configuration. The accuracy class can be selected from class AA, A or class B. Thermocouple  types  E,  J,  K, N and T are also available in either simplex, duplex or triplex configuration.  Others are also available. Lean more about RTD and Thermocouple sensors here and here. Please specify the parameter you want from the image below.

CHOOSE A TERMINAL HEAD and temperature transmitter

All our connection heads accept temperature transmitters or connection blocks with a 33mm mounting

SAFE AREA TERMINAL HEADS SUITABLE FOR THIS SENSOR

SCH4 – General purpose ABS plastic terminal head. Can also be used with loop powered or battery powered. process displays.

SCH60 – Aluminium or Stainless Steel heavy duty terminal head. Is available with viewing window for loop powered or battery powered process displays.  A blind version is also available for temperature transmitters

HAZARDOUS AREA TERMINAL HEADS SUITABLE FOR THIS SENSOR

SCH4X Temperature monitoring system

SCH60X/A/I Temperature monitoring system

CHOOSE A TEMPERATURE TRANSMITTER SUITABLE FOR THIS SENSOR

See our range of safe area and hazardous area  temperature transmitters.
